安装
pip install rich
# PDM
pdm add rich
基础
from rich import print
print("Hello World")
Rich功能非常丰富，从日志处理到富文本显示甚至动态的终端界面。
要使用Rich用做界面的话，一般是这样的：
from rich.console import Console
from rich.layout import Layout
from rich.panel import
console = Console()
panel = Panel(name="panel_name")
layout = Layout(panel,name="layout_name")
界面Layout和面板Panel是经常要用到的东西，Layout作为界面布局，Panel内展示元素并风格化，比如经常使用的表格Table；要实现动态变化而不是print需要用到Live。
然后是一些小记录。
进度条 Process
这里展示的是一个模拟文件下载的进度条
from time import sleep
from rich.panel import Panel
from rich.progress import (
BarColumn,
FileSizeColumn,
Progress,
TextColumn,
TimeRemainingColumn,
TransferSpeedColumn,
)
class MyProgress(Progress):
def get_renderables(self):
yield Panel(self.make_tasks_table(self.tasks))
text_column = TextColumn("{task.description}")
bar_column = BarColumn(bar_width=None)
progress = MyProgress(
text_column,
"•",
FileSizeColumn(),
bar_column,
TransferSpeedColumn(),
"•",
TimeRemainingColumn(),
expand=True,
)
# 描述文本 • 文件大小组件 进度条 速度展示 • 剩余时间 自动扩充
with progress:
n = 0
file_size = 1024 * 1024 * 1024
task_id = progress.add_task(f"Downloading file {n}", total=file_size)
for n in range(100):
progress.update(task_id, completed=n / 100 * file_size, description=f"{n}%")
sleep(0.1)
可以看到progress提供了非常多的工具来帮助构建进度条
转圈动画 Spinner
一个基本的spinner
from rich.spinner import Spinner
spinner = Spinner("dots")
你可以将它装载到Table上，比如
from rich.console import Console
from rich.spinner import Spinner
from rich.table import Table
table = Table(title="File")
table.add_column("ID", justify="right", style="cyan", no_wrap=True)
table.add_column("Name", style="magenta")
table.add_column("Size", justify="right", style="green")
table.add_column("Status", justify="center")
spinner = Spinner("dots")
table.add_row("1", "1.txt", "0.2MB", spinner)
table.add_row("2", "2.txt", "1.1MB", spinner)
table.add_row("3", "3.txt", "0.3MB", spinner)
table.add_row("4", "4.txt", "0.8MB", spinner)
console = Console()
console.print(table)
注意，此时你是无法看到旋转动画的，因为使用的是print，动画是需要在with console或者with live中操作
import time
from rich.console import Console
from rich.spinner import Spinner
console = Console()
spinner = Spinner("dots")
with console.status(spinner):
# 模拟进行中的操作
time.sleep(5)
console.print("Task completed!")
此时动画正常
配合Loguru输出日志
示例：来源Github
from loguru import logger
from rich.console import Console
console = Console()
logger.remove()
def _log_formatter(record: dict) -> str:
"""Log message formatter"""
color_map = {
"TRACE": "dim blue",
"DEBUG": "cyan",
"INFO": "bold",
"SUCCESS": "bold green",
"WARNING": "yellow",
"ERROR": "bold red",
"CRITICAL": "bold white on red",
}
lvl_color = color_map.get(record["level"].name, "cyan")
return (
"[not bold green]{time:YYYY/MM/DD HH:mm:ss}[/not bold green] | {level.icon}"
+ f" - [{lvl_color}]{{message}}[/{lvl_color}]"
)
log_handler = logger.add(
console.print, # type: ignore
level="DEBUG",
format=_log_formatter, # type: ignore
colorize=True,
)
logger.debug("Debug message")
logger.info("Info message")
logger.warning("Warning message")
logger.error("Error message")
用户输入 Prompt
password = Prompt.ask("input your password (hideen)", password=True)
注意，Prompt操作需要停止Live，比如live.stop()
Table行数过多的一种解决方案
每次新增行，表格会始终展示最新行，要是超过控制台展示高度，则会截断上面的旧行；是一个很好的参考
import os
import time
from collections import deque
from rich.console import Console
from rich.layout import Layout
from rich.live import Live
from rich.table import Table
def generate_table(rows):
layout = Layout()
console = Console()
table = Table()
table.add_column("Time")
table.add_column("Message")
rows = list(rows)
# This would also get the height:
# render_map = layout.render(console, console.options)
# render_map[layout].region.height
n_rows = os.get_terminal_size()[1]
while n_rows >= 0:
table = Table()
table.add_column("Time")
table.add_column("Message")
for row in rows[-n_rows:]:
table.add_row(*row)
layout.update(table)
render_map = layout.render(console, console.options)
render_length = len(render_map[layout].render[-1])
if render_length > 2:
# The table is overflowing
n_rows -= 1
else:
break
return table
width, height = os.get_terminal_size()
messages = deque(maxlen=height - 4) # save space for header and footer
with Live(generate_table(messages), refresh_per_second=5) as live:
for i in range(100):
time.sleep(0.2)
messages.append((time.asctime(), f"Event {i:03d}"))
live.update(generate_table(messages))

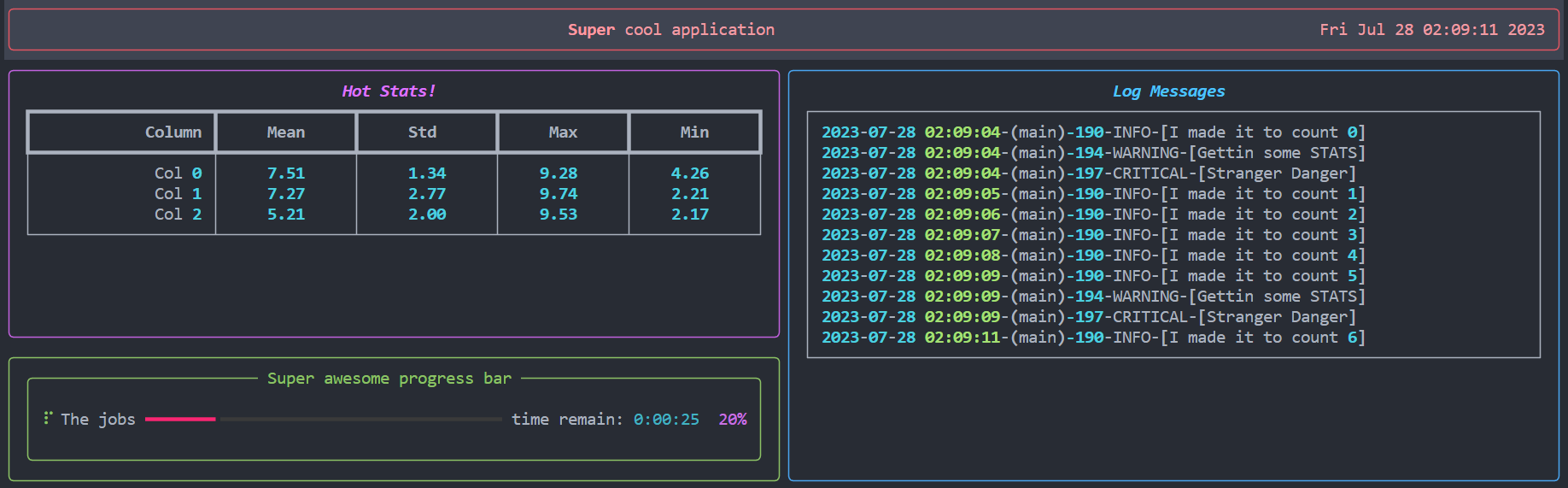

一个复杂界面的案例
来源：Github
我修改了一点，以保证Type Hint正确
import logging
import os
from datetime import datetime
from pathlib import Path
from time import sleep
import numpy as np
from rich.console import Console
from rich.layout import Layout
from rich.live import Live
from rich.panel import Panel
from rich.progress import (
BarColumn,
Progress,
SpinnerColumn,
TextColumn,
TimeRemainingColumn,
)
from rich.table import Table
def get_file_handler(log_dir: Path) -> logging.FileHandler:
log_format = (
"[%(asctime)s]-[%(funcName)s(%(lineno)d)]-[%(levelname)s]-[%(message)s]"
)
log_file = log_dir / "test.log"
file_handler = logging.FileHandler(log_file)
file_handler.setFormatter(logging.Formatter(log_format))
return file_handler
def get_logger(log_dir: Path, console: Console) -> logging.Logger:
logger = logging.getLogger(__name__)
logger.setLevel(logging.INFO)
logger.addHandler(get_file_handler(log_dir))
return logger
def make_layout() -> Layout:
layout = Layout(name="root")
layout.split(Layout(name="header", size=3), Layout(name="main"))
layout["main"].split_row(Layout(name="leftside"), Layout(name="termoutput"))
layout["leftside"].split_column(
Layout(name="stats", ratio=2), Layout(name="progbar")
)
return layout
def get_stats() -> Table:
rand_arr = np.random.randint(low=2, high=10, size=(10, 3)) + np.random.random(
(10, 3)
)
stats_table = Table(
expand=True,
show_header=True,
header_style="bold",
title="[magenta][b]Hot Stats![/b]",
highlight=True,
)
stats_table.add_column("Column", justify="right")
stats_table.add_column("Mean", justify="center")
stats_table.add_column("Std", justify="center")
stats_table.add_column("Max", justify="center")
stats_table.add_column("Min", justify="center")
for col in range(rand_arr.shape[1]):
stats_table.add_row(
f"Col {col}",
f"{rand_arr[:, col].mean():.2f}",
f"{rand_arr[:, col].std():.2f}",
f"{rand_arr[:, col].max():.2f}",
f"{rand_arr[:, col].min():.2f}",
)
return stats_table
# Old code for reading a the last line of a log file.
# def get_last_log(logger) -> str:
# log_file_path = logger.handlers[0].baseFilename
# with open(log_file_path, "r") as file:
# log_entries = file.readlines()
# last_entry = log_entries[-1].strip() if log_entries else ""
# return last_entry
class make_header:
"""Display header with clock."""
def __rich__(self) -> Panel:
grid = Table.grid(expand=True)
grid.add_column(justify="center", ratio=1)
grid.add_column(justify="right")
grid.add_row(
"[b]Super[/b] cool application",
datetime.now().ctime().replace(":", "[blink]:[/]"),
)
return Panel(grid, style="red on black")
class MainTableHandler(logging.Handler):
def __init__(self, main_table: Table, layout: Layout, log_level: str):
super().__init__()
self.main_table = main_table
self.log_list = []
self.layout = layout
self.log_format = (
"%(asctime)s-(%(funcName)s)-%(lineno)d-%(levelname)s-[%(message)s]"
)
self.setLevel(log_level)
# Could set colors for levels here.
def emit(self, record):
record.asctime = record.asctime.split(",")[0]
# msg = self.format(record) #if you want just the message info switch comment lines
msg = self.log_format % record.__dict__
tsize = os.get_terminal_size().lines // 2
if len(self.log_list) > tsize:
self.log_list.append(msg)
self.log_list.pop(0)
self.main_table = redraw_main_table(self.log_list)
self.layout["termoutput"].update(Panel(self.main_table, border_style="red"))
else:
self.main_table.add_row(msg)
self.log_list.append(msg)
def redraw_main_table(temp_list: list) -> Table:
main_table = Table(
expand=True,
show_header=False,
header_style="bold",
title="[blue][b]Log Entries[/b]",
highlight=True,
)
main_table.add_column("Log Entries")
for row in temp_list:
main_table.add_row(row)
return main_table
def main():
console = Console(color_system="truecolor")
logger = get_logger(Path.cwd(), console=console)
main_table = Table(
expand=True,
show_header=False,
header_style="bold",
title="[blue][b]Log Messages[/b]",
highlight=True,
)
main_table.add_column("Log Output")
my_progress_bar = Progress(
SpinnerColumn(),
TextColumn("{task.description}"),
BarColumn(),
"time remain:",
TimeRemainingColumn(),
TextColumn("[progress.percentage]{task.percentage:>3.0f}%"),
)
my_counter = range(30)
my_task = my_progress_bar.add_task("The jobs", total=len(my_counter))
progress_table = Table.grid(expand=True)
progress_table.add_row(
Panel(
my_progress_bar,
title="Super awesome progress bar",
border_style="green",
padding=(1, 1),
)
)
stats_table = get_stats()
layout = make_layout()
layout["header"].update(make_header())
layout["progbar"].update(Panel(progress_table, border_style="green"))
layout["termoutput"].update(Panel(main_table, border_style="blue"))
layout["stats"].update(Panel(stats_table, border_style="magenta"))
with Live(layout, refresh_per_second=10, screen=True) as live:
# Add MainTableHandler to logger
logger.addHandler(MainTableHandler(main_table, layout, logger.level)) # type: ignore
for count in my_counter:
sleep(1)
logger.info(f"I made it to count {count}")
my_progress_bar.update(my_task, completed=count)
if count % 5 == 0:
logger.warning("Gettin some STATS")
stats_table = get_stats()
layout["stats"].update(Panel(stats_table, border_style="magenta"))
logger.critical("Stranger Danger")
live.refresh()
logger.info("Done logging.")
if __name__ == "__main__":
main()
这个示例可以说好，常用的都有，是个非常好的参考。
